Clickable rules allow diagram designers to prevent buttons from being clicked depending on tag conditions. They function a lot like workflow rules, with the exception that the rules don't "kick in" until a button is clicked. This can be helpful for preventing duplicate submissions, requiring process validation, etc. After a button with this type of rule set up is clicked, it will immediately be disabled. Starting ~1 second later, the diagram will evaluate the rule every second and re-enable the button when the rule's conditions are met. Note that if those conditions become false again, the button won't be re-disabled until it is clicked again.

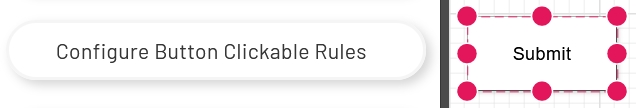

These rules only work on tag submit buttons, Mongoose submit buttons, and database output buttons. To set them up, select a submit button on the diagram canvas, then click the 'Configure Button Clickable Rules' button in the left panel:

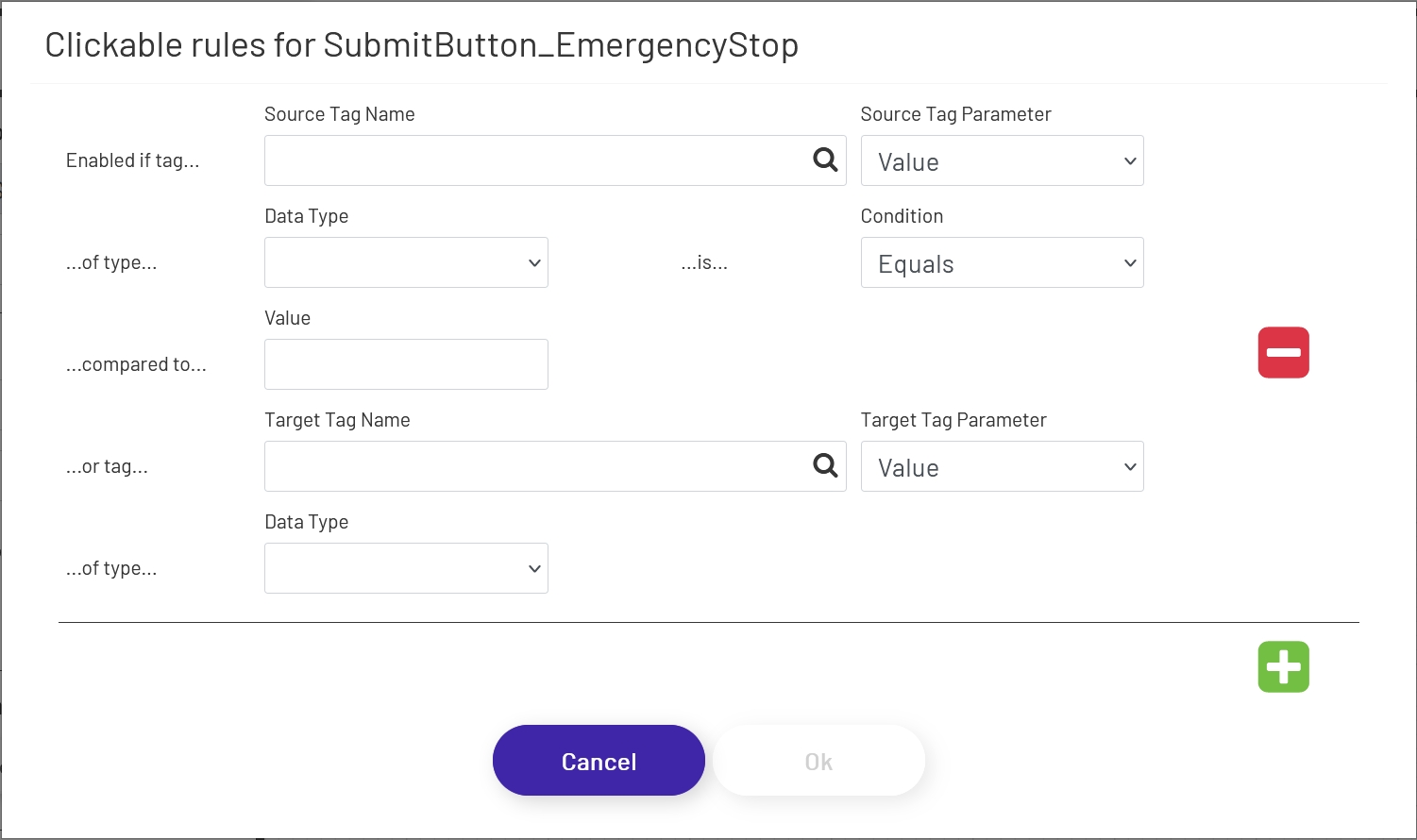

That will open a popup window to configure the button's clickable rules. Click the green + icon on the right to create your first rule or add additional rules to an existing list:

Each rule is made up of several parts:

• Source Tag Name: The tag this rule is going to monitor to determine when the button should be re-enabled. Multiple rules for the same button can look at different tags.

• Source Tag Parameter: The parameter of the source tag set above that this rule will look at. This is chosen from a list of parameters like Value, alarm limits, etc. Note that some of the options in this dropdown depend on features being enabled on that tag. For example, choosing to base a rule on an alarm limit value will not work if that alarm limit isn't enabled on the tag.

• Data Type: This is the data type (string, float, boolean, etc) of the Source Tag Parameter being monitored for this rule. In most cases, Prophecy will automatically select the correct data type to match the value returned by the Data Acquisition Engine. In the case of 'Value', the user will have to select the data type, as that can vary by tag. This setting determines which Conditions are available (see below). If this is set incorrectly for the 'Value' tag parameter, the rule may not work properly.

• Condition: This is the comparison the diagram will make between the value it pulls out of the source tag and the comparison value you configure below. The available options vary based on the Data Type set above.

• Value: The Source Tag Parameter value you configured the rule to use can be compared to this 'hard-coded' value, using the Condition you configured above. The allowed values in this field will vary based on the Data Type chosen above. For example, you will not be able to enter 'Bob' for the comparison value of an integer tag value. This field will be disabled if a Target Tag Name is specified (see below).

• Target Tag Name: Rather than comparing the source value to the value that can be specified above, you can compare it to a value from another tag. Choose the name of that tag here. This field will be disabled if a pre-defined value is specified above.

• Target Tag Parameter: The parameter of the target tag set above that this rule will look at. This is chosen from a list of parameters like Value, alarm limits, etc. Note that some of the options in this dropdown depend on features being enabled on that tag. For example, choosing to base a rule on an alarm limit value will not work if that alarm limit isn't enabled on the tag.

• Data Type: This is the data type (string, float, boolean, etc) of the Target Tag Parameter being monitored for this rule. In most cases, Prophecy will automatically select the correct data type to match the value returned by the Data Acquisition Engine. In the case of 'Value', the user will have to select the data type, as that can vary by tag. If this is set incorrectly for the 'Value' tag parameter, the rule may not work properly. The editor will not allow this data type to be set to one that is incompatible with the Source Tag data type above. For example, you cannot configure a rule to compare a boolean to an integer.

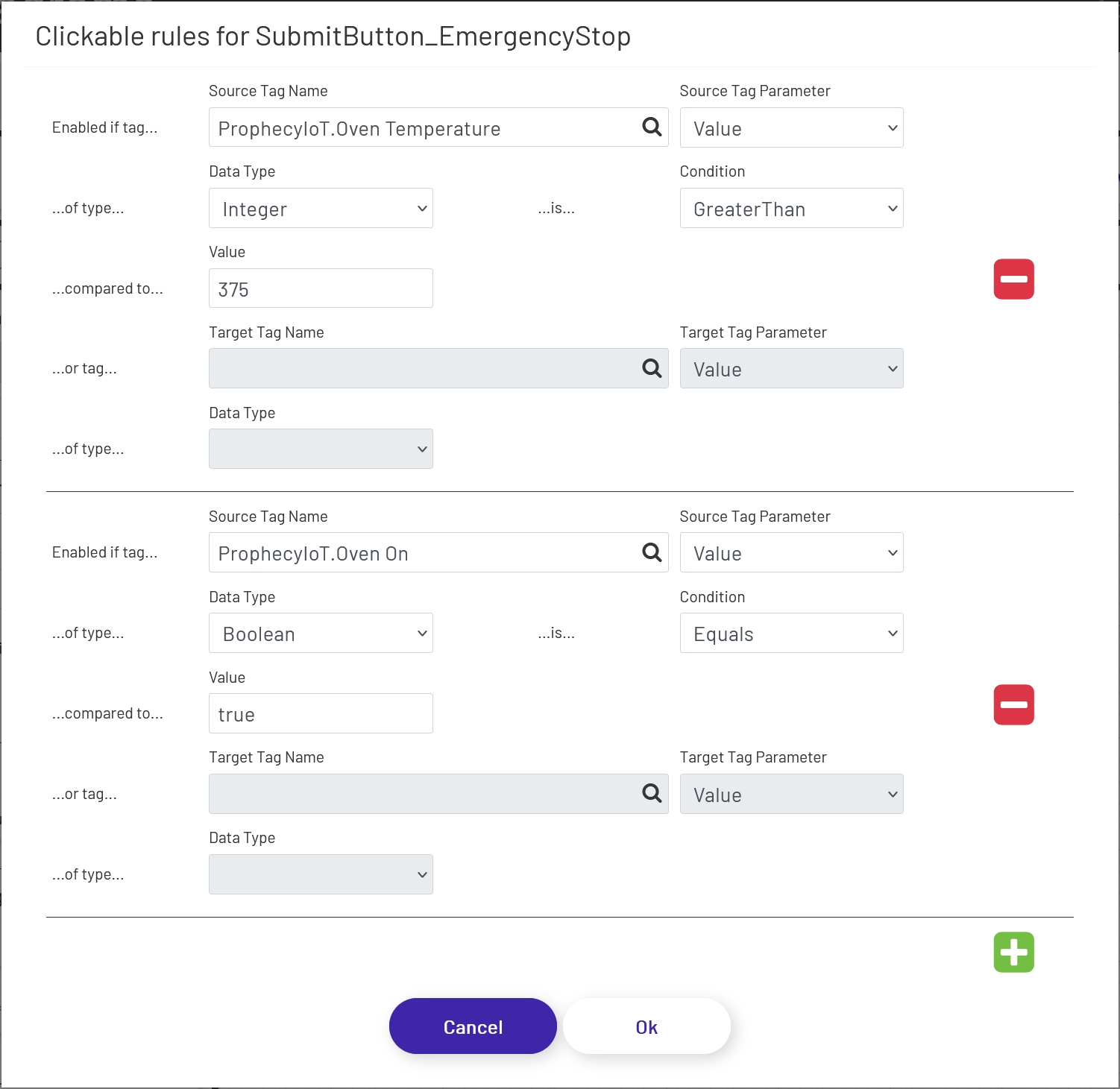

The image below shows an example set of rules that will only re-enable a button if one tag value is greater than a preset value, and another tag's value is 'true'. If either of those conditions are not met, the button will stay disabled after it is clicked.
