The scripts tree is a graphical representation of the grouping and sub grouping of all the scripts in the ProphecyIoT installation. Groups and subgroups in the scripts Tree are displayed with an upside down triangle to the left of the group name and a folder icon to the right of the group name. Scripts are right indented and displayed with a script icon to the right of the script name. All items in the script Tree are sub items of the Scripts group. This is the main group in all ProphecyIoT installations. All scripts, groups, and subgroups added through the user interface will be placed inside of this group.

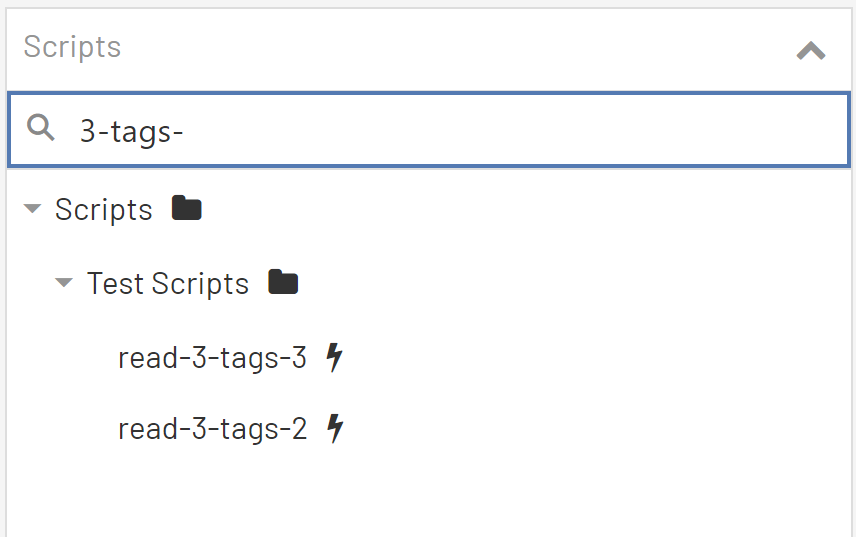

Searching Scripts

All script Groups and scripts in the script Tree are searchable. To search Groups and scripts, simply start typing in the Search Box at the top of the script Tree. The search will automatically start filtering the list with every key stroke. To show the complete list, simply remove all text from the 'Search Box'.

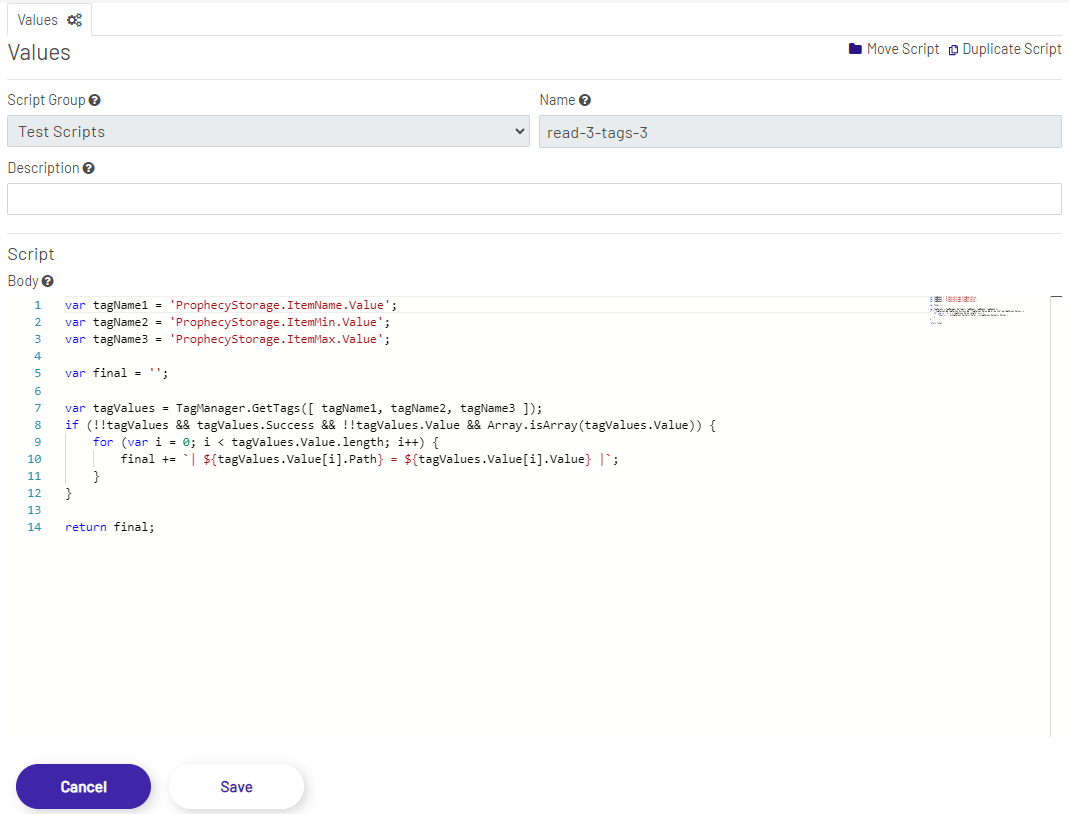

Selecting Tags

To select a script, find the script in the script Tree and click on the script name. Clicking on the script name will highlight the script and enable all of the configurable properties of the script in the Edit View.
